China famous Manufacture New Type Maker Automated Screen Printing Heat Transfer Machine
screen printing machine
Single multi-color automatic screen printing machine (cosmetic bottle)
The main applicable printed matters are: various round, oval and square (cosmetics, medicines and food, etc.) containers,
The material can be plastic, glass, ceramic, metal, etc.
Production speed up to 4200 pieces/min
Single multi-color automatic screen printing machine - printing bottle glass plastic bottle
The IT window glass automatic screen printing machine is developed and designed for the IT industry's demand for high-precision, intelligent automatic screen printing equipment. Automatic transfer, machine vision positioning and printing, automatic docking with the front and rear processes, depending on product specifications. The automatic production cycle is 5- In 8 seconds, this equipment unit can dedust and remove static electricity, drying, online testing, etc. to form a fully automatic production line.
Scope of application:

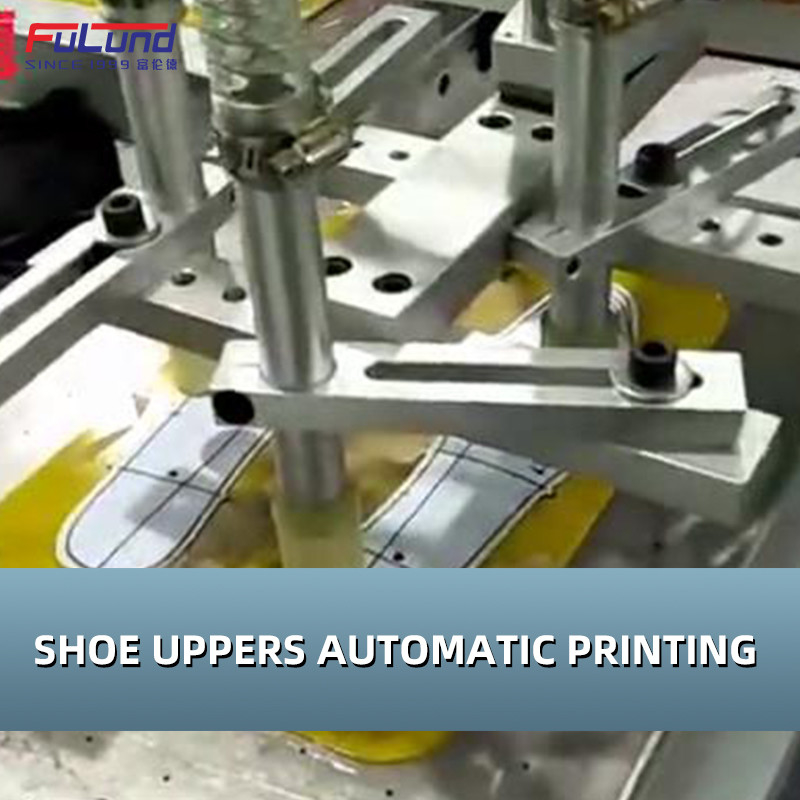

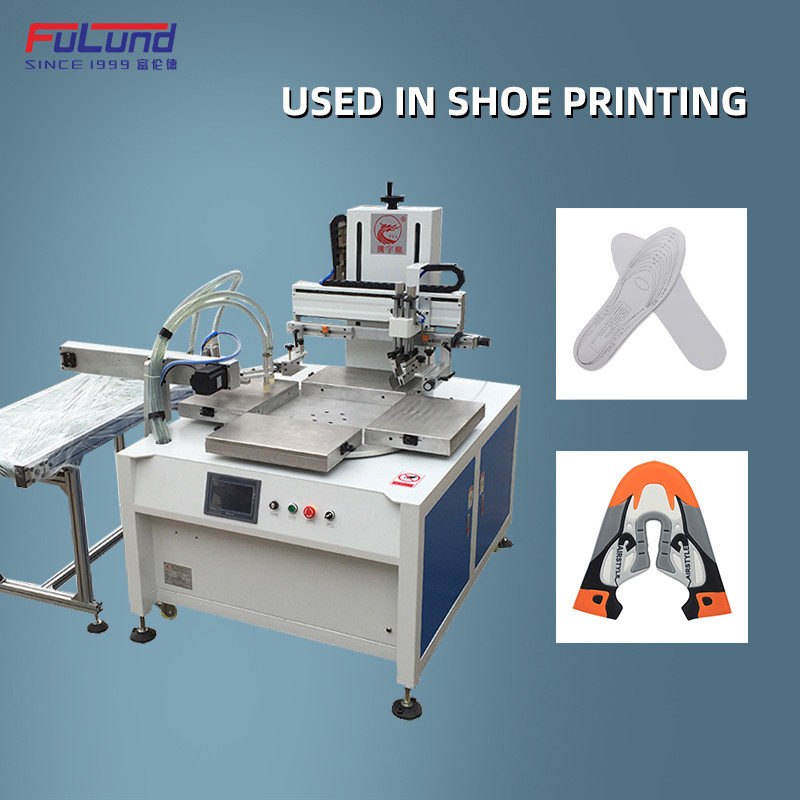

Widely use in the printing of gloves, insoles, shoes upper, mid-sole, bags and other industries , print the position line, mark line and other various shape of cut-parts .
Features:
1, Automatic printing, automatic receiving, can stack according to the setting quantity, no need manual count and can packaging directly.
2, Manual feeding material , suit for any shape material, broad scope.
3, Positioning rapid, change printing plate easily, simple to operate.
4, Reduce manual printing and receiving process, workers only need put the material, high efficiency, 2 Seconds one time, the efficiency is 1.5 times of the traditional process.
| Model No. |
Machine measure(mm) |
Wood case measure(mm) |
N.W/ G.W (kg) | Capacity |
Max printing size |

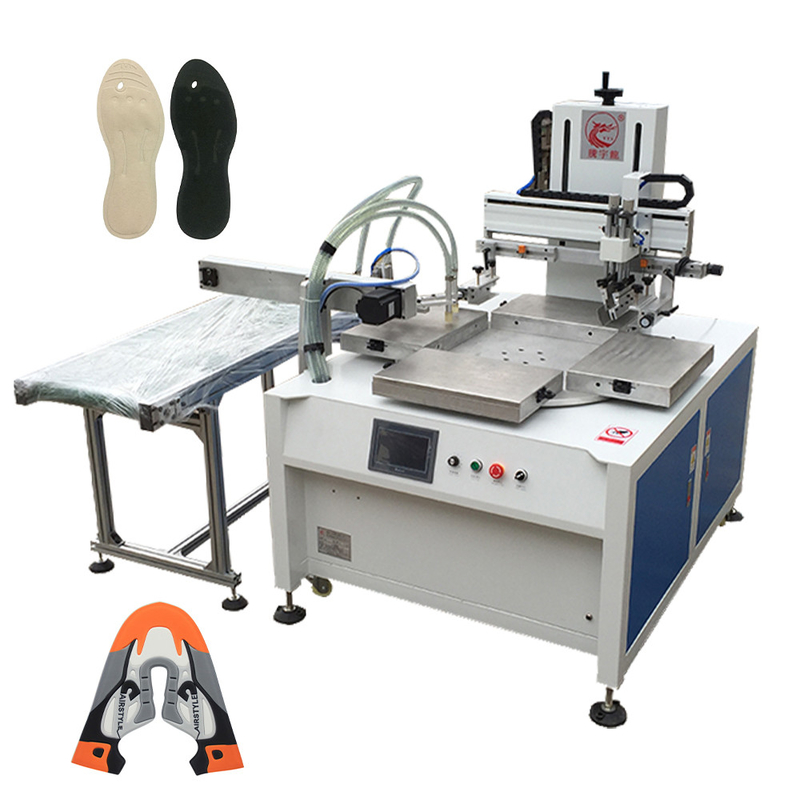

| FLD-688C | 1740*1500*1530 | 1830*1570*1650 | 450/550 | 1500times/hour | 450*300mm |
| Voltage | Air pressure | Power |
Printing thickness |
Printing platform |
|
| 220V | 4.5~6kpa | 6.9kw | 0~50mm | 600mm |
Contrast:
| Capacity | Feeding way | Receiving way | Printing way | Operator | |
| Traditional machine | 800times/hour | Manual | Manual | Manual put label | 1 |
| FLD-688C | 1500times/hour | Manual | Automatic | Automatic put label | 1 |
Conclustion:Use FLD-688C, four-station, factory can become automatic, one person can operate one set machine, workers only need put the material, no need manual print, can reduce operator fatigue, higher efficiency, can save more labor cost. For example: Monthly labor cost $547, the label cost can save 547x12x1.5=$9846 one year.
