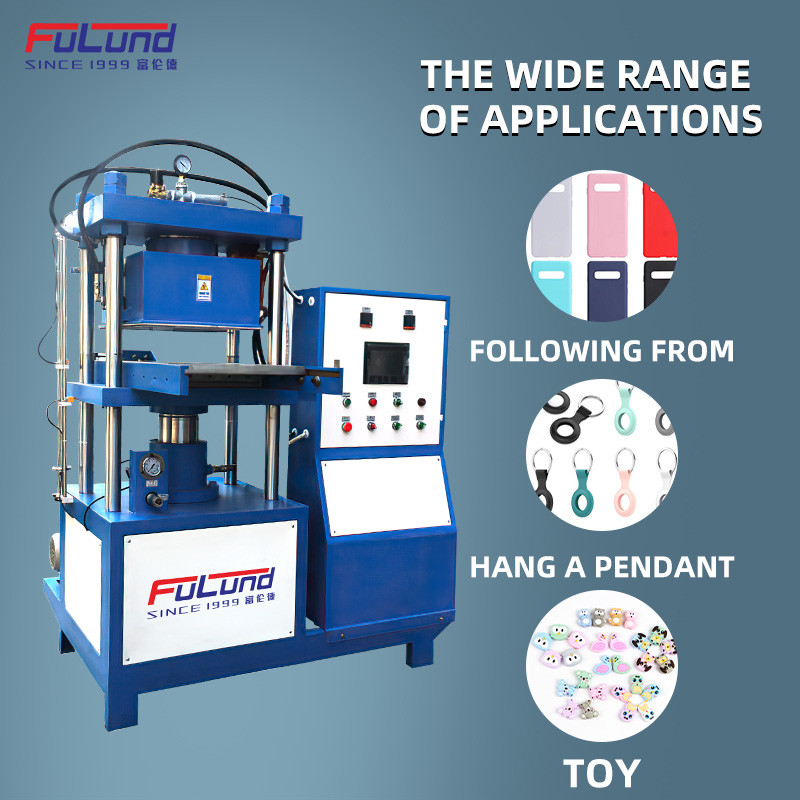

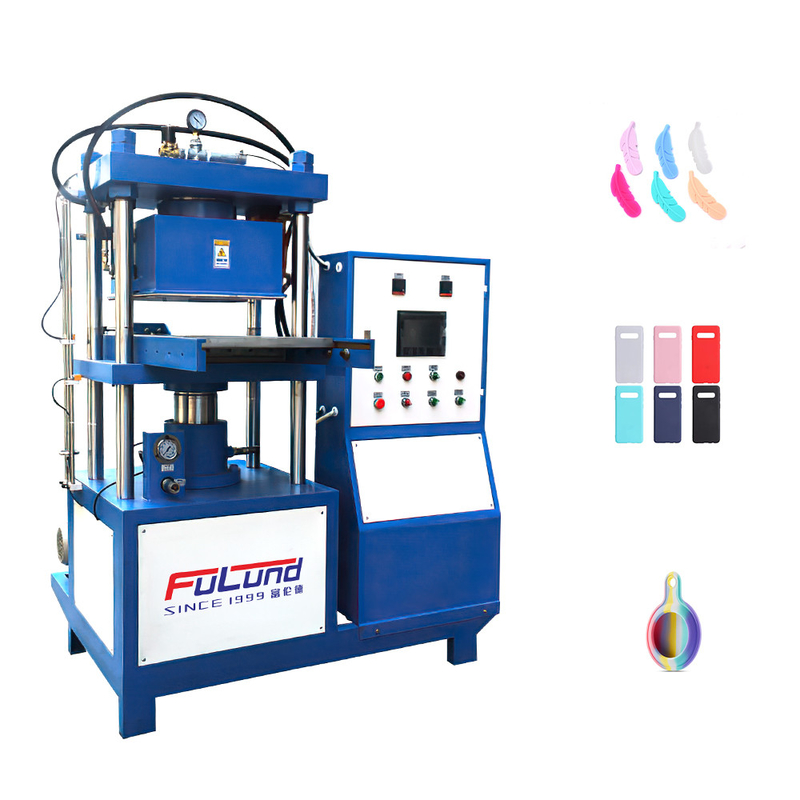

FuLund Hot sale vulcanizing press for make silicone phone case Kitchen utensils Protective Cover Textile Machinery

FuLund Hot sale vulcanizing press for make silicone phone case Kitchen utensils Protective Cover Textile Machinery

  • Nome
    Máquina vulcanizando lisa
  • Categoria automática
    Semiautomático, automático, manual
  • Preço
    competitive
  • Componentes do núcleo
    Plc
  • Dimensão (l*w*h)
    1400*2000*1600MM
  • Tensão
    AC380V±5%
  • Poder (quilowatts)
    12
  • Palavra-chave 1
    vulcanizando a imprensa para o pneumático da motocicleta
  • Palavra-chave 2
    imprensa vulcanizando quente portátil
  • Palavra-chave 3
    única imprensa vulcanizando de borracha
  • Lugar de origem
    CHINA
  • Marca
    Fulund
  • Certificação
    CE
  • Número do modelo
    FLD-B09
  • Quantidade de ordem mínima
    1
  • Preço
    USD
  • Detalhes da embalagem
    Caso de madeira
  • Tempo de entrega
    7days
  • Termos de pagamento
    T/T, Western Union, MoneyGram
  • Habilidade da fonte
    100PCS/MONTH

FuLund Hot sale vulcanizing press for make silicone phone case Kitchen utensils Protective Cover Textile Machinery

FuLund Hot sale vulcanizing press for make silicone phone case Kitchen utensils Protective Cover Textile Machinery

Fulund has a long history since its establishment in 1999. Due to the needs of development, the original brand (TYL) expanded the new brand Fulund in 2022 . Fulund has customers all over the world,such as international brands shoe manufacturer.


Fulund mainly products: Hot label machine, foam cutting machine, insole hot stamping machine, shoe tongue transfer hot stamping machine, insole heat transfer machine, insole cutting and transfer integrated machine, insole printing machine, silk screen printing machine, embossing machine, soft rubber equipment , vacuum vulcanizing machine, silicone labeling machine, glue dispensing machine, etc.

Use and installation of Fulund vulcanizer: The vulcanizer is light and light, and can be moved by humans. Before installation, consider the convenience of power supply and water source, and the operating space. When constructing on the conveyor, use sleepers to build a platform, and its requirements are based on the vulcanized tape. The location of the vulcanizer depends on the number of vulcanizers used at the same time. Before construction, please prepare tools for handling the tape, rubber materials, and other spare parts, and a 0~200°C mercury thermometer.



1. Automatic constant temperature

2. Automatic timing

3. Automatic counting

4. Four column structure



Model 30T 40T 50(63)T
Temperature regulation At room temperature ~ 300 At room temperature ~ 300 At room temperature ~ 300
normal temperature-200 degrees heating speed about15min about15min about15min
Temperature precision automatic/±2°C automatic/±2°C automatic/±2°C
Machine operation control Circuit control Circuit PLC touch-screen
Drive way hydraulic hydraulic hydraulic
pressure 10-20Mpa 10-20Mpa 10-20Mpa
power supply AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz AC380V ± 5%50/60Hz
Power: 12KW 15KW 18KW
Motor Power 4KW 4KW 5.5KW
Heating plate distance 200MM 200MM 200MM
Oil cylinder stroke 200MM 200MM 200MM
Movement mode of skateboard Automatic Automatic Automatic
Speed of rise and fall ≥15mm/s ≥15mm/s ≥25mm/s
Pressure regulation mode Pressure relay Pressure relay Digital modulation
Hot pressing time 0.1s to 999s 0.1s to 999s 0.1s to 999s
Maximum pressure 300KN 400KN 500(630)KN
Sliding plate area 440 * 500MM 440 * 500MM 460 * 550MM
Heating plate area

400 × 400MM



400 * 400MM



400 * 450MM



host volume 1400 × 2000 × 1600MM 1400 × 2000 × 1700MM 1500 × 2000 × 1800MM
weight 1200KG 1350KG

1500KG
